007 Priority Zoning Circulator Pump w/ IFC, 1/25 HP, 115V
Brand: Taco
Part#: 007-ZF5-3IFC

Each Taco 007-ZF5-3IFC model Priority Zoning Circulator comes with a built-in transformer, relay and priority switch, so all the wiring is done directly to the circulator’s PC board instead of an external control (such as a switching relay), making it ideal for adding a zone or an indirect hot water heater.

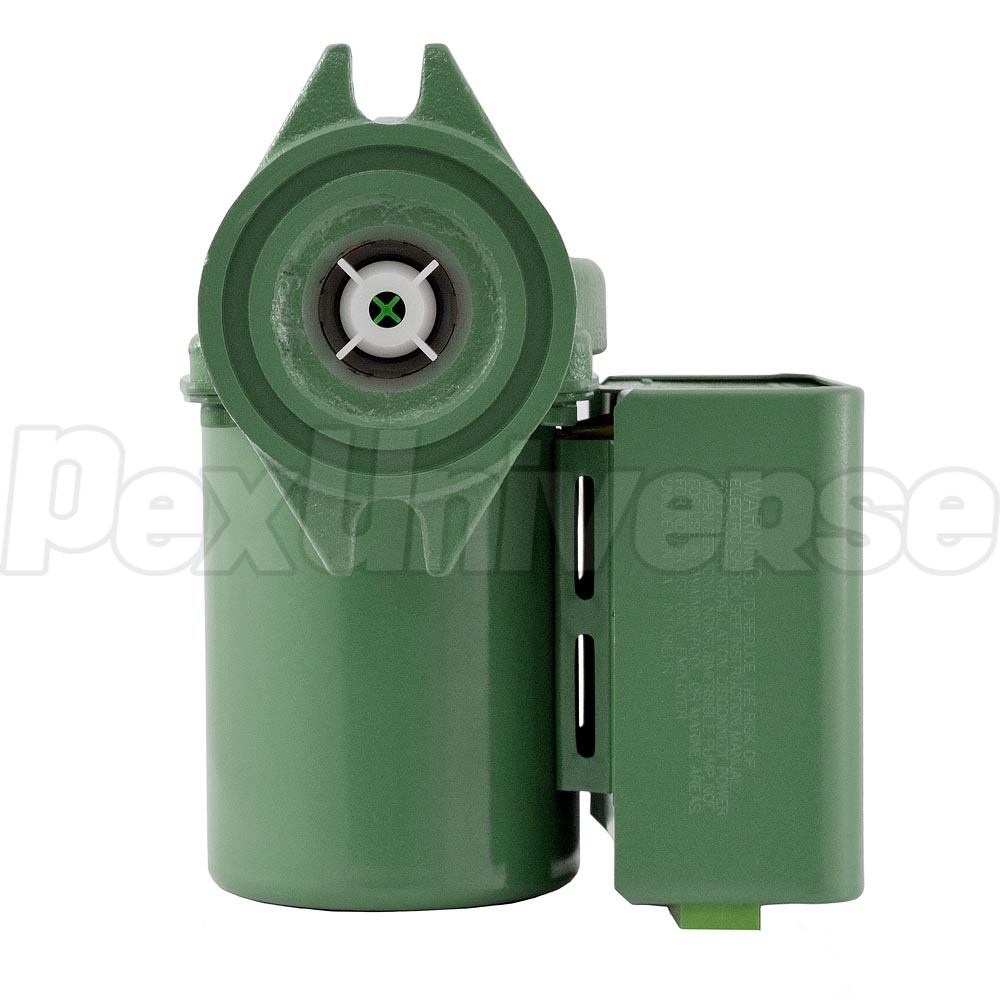

The priority switch allows the installer to choose the zone that requires the most attention and, when activated, run only that circulator. Taco 007-ZF5-3IFC priority zoning circulator can be used in conjunction with other circulators or zone valves. This models also comes equipped with a built-in IFC (Integral Flow Check), which performs better than the standalone alternative and reduces installation time and costs.

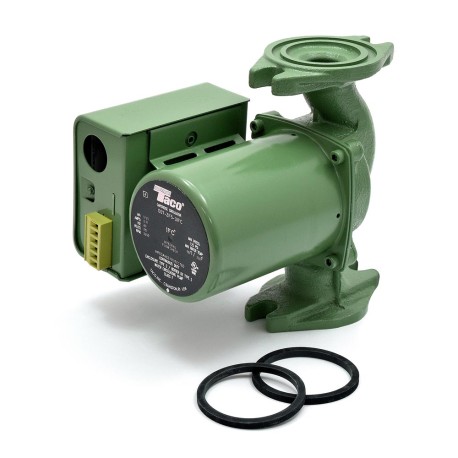

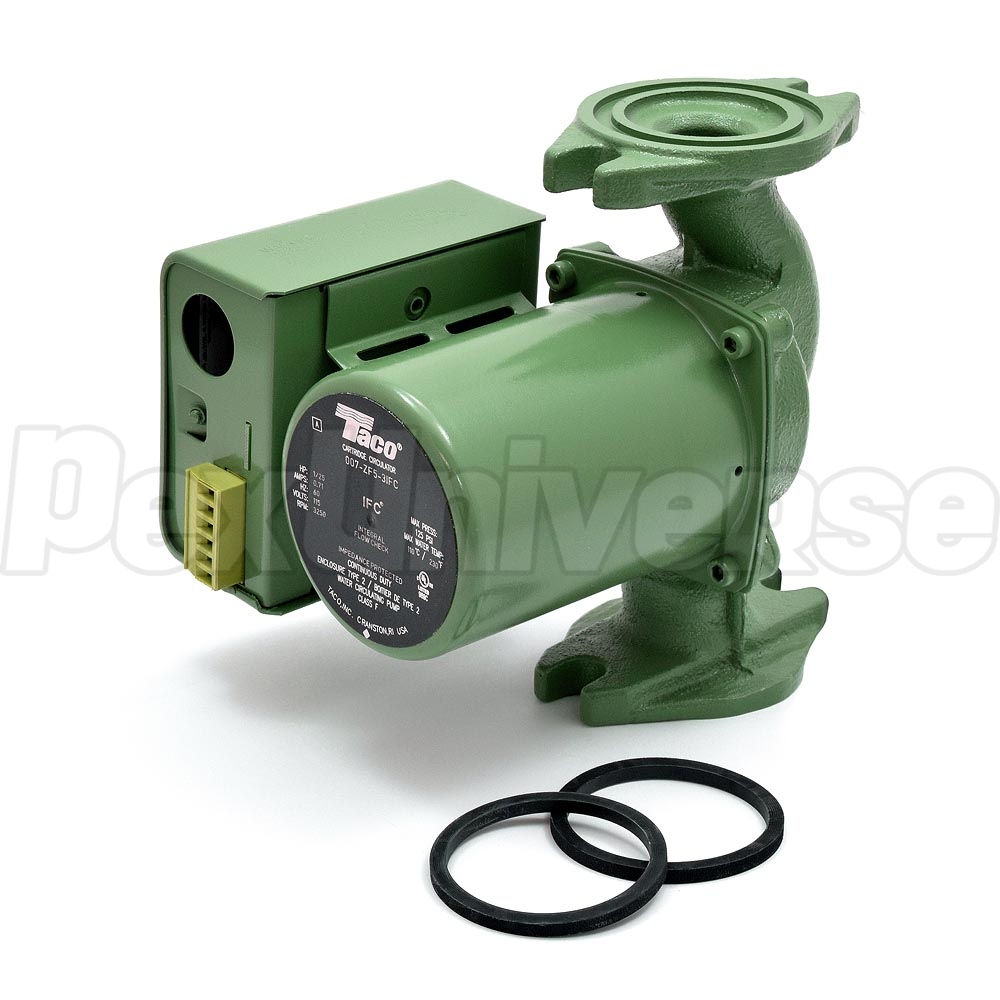

Gaskets (O-rings) included;

Contact Ratings:
  • Terminals R+W: 24VAC, Phase 1
  • Terminals X+X: 24VAC
  • Terminals R+C: 24VAC (Output) 0.5VA (max)
  • Terminal P- Priority: 115VAC, Phase 1, 5.0 Amps Inrush Current (max)
  • Terminals H+N: 115VAC, Phase 1, 8.0 Amps Inrush Current (max)

Thermostat Ratings:
  • 24VAC SPDT 2-Wire Heating;
  • 24VAC Digital Electronic;
  • 2-Wire Max Draw 30 Milliamps;

Applications:
  • Zoning with circulator pumps;
  • Indirect hot water heaters;
  • Adding a zone;
  • Prioritizing under-sized zones;

Features:
  • Patented Design
  • Snap-in PC Board
  • Removable, Quick-Connect Low Voltage terminal strip
  • Optional Integral Flow Check (IFC®)
  • UL Listed
  • Simplified Wiring
  • LED Power Light
  • 100% Factory Tested
  • Works With Other Circulators or Zone Valves
  • Universal Thermostat Compatibility
  • Made in USA

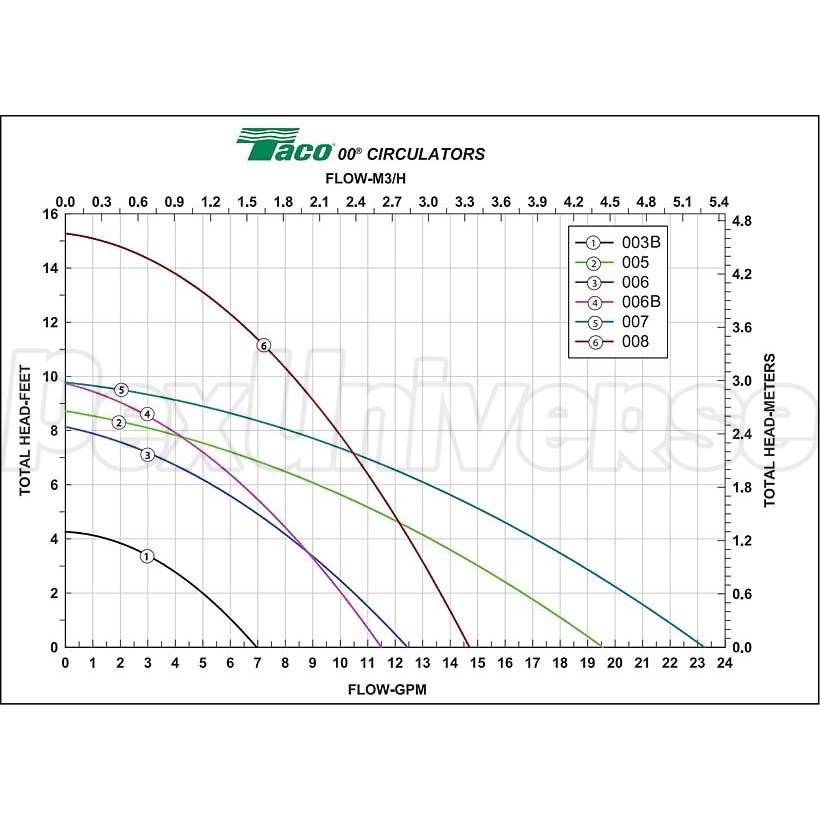

Technical Specifications:
  • Flow Range: 0 – 23 GPM
  • Head Range: 0 – 10 Feet
  • Minimum Fluid Temperature: 40ËšF (4ËšC)
  • Maximum Fluid Temperature: 230°F (115ËšC)
  • Maximum Working Pressure: 125 psi
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

Warranty:
3-year manufacturer's warranty;
