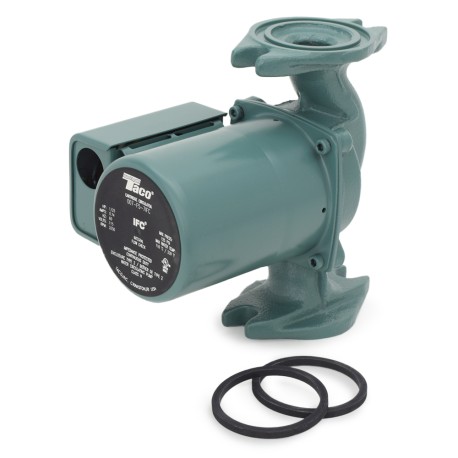

007 Circulator Pump w/ IFC, 1/25 HP, 115V
Brand: Taco
Part#: 007-F5-7IFC

Taco 007-F5-7IFC Circulator Pump with IFC (Integral Flow Check) is designed to simplify piping, reduce installation costs and improve system performance. With an IFC (Integral Flow Check) inside the Taco 007-F5-7IFC model pump, the need for a separate in-line flow check is eliminated. This feature reduces a pressure drop and increases flow performance vs. in-line flow checks. Both the IFC and the cartridge are easily accessed for removal and service.


Applications:
  • Hydronic Heating/Cooling
  • Radiant Heating
  • Zoning with Pumps
  • Hydro-Air Fan Coils
  • And others

Cross-References:
  • Grundfos UP15-42F/R, UPS15-58FC spd 2

Technical Specifications:

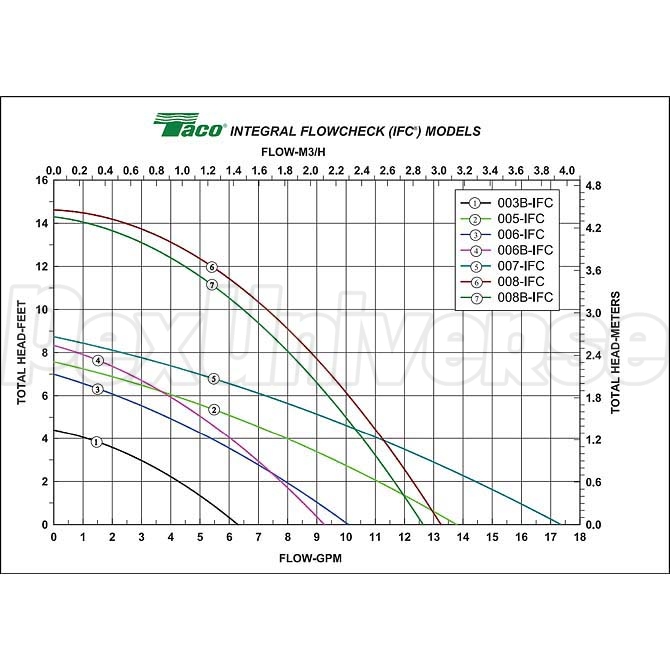

  • Flow Range: 0 – 17 GPM;
  • Head Range: 0 – 8.5 Feet;
  • Minimum Fluid Temperature: 40ËšF (4ËšC);
  • Maximum Fluid Temperature: 240°F (115ËšC);
  • Maximum Working Pressure: 125 psi;
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged;
  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 0.71A;
  • HP: 1/25HP;

Warranty:
3-year manufacturer's warranty.
