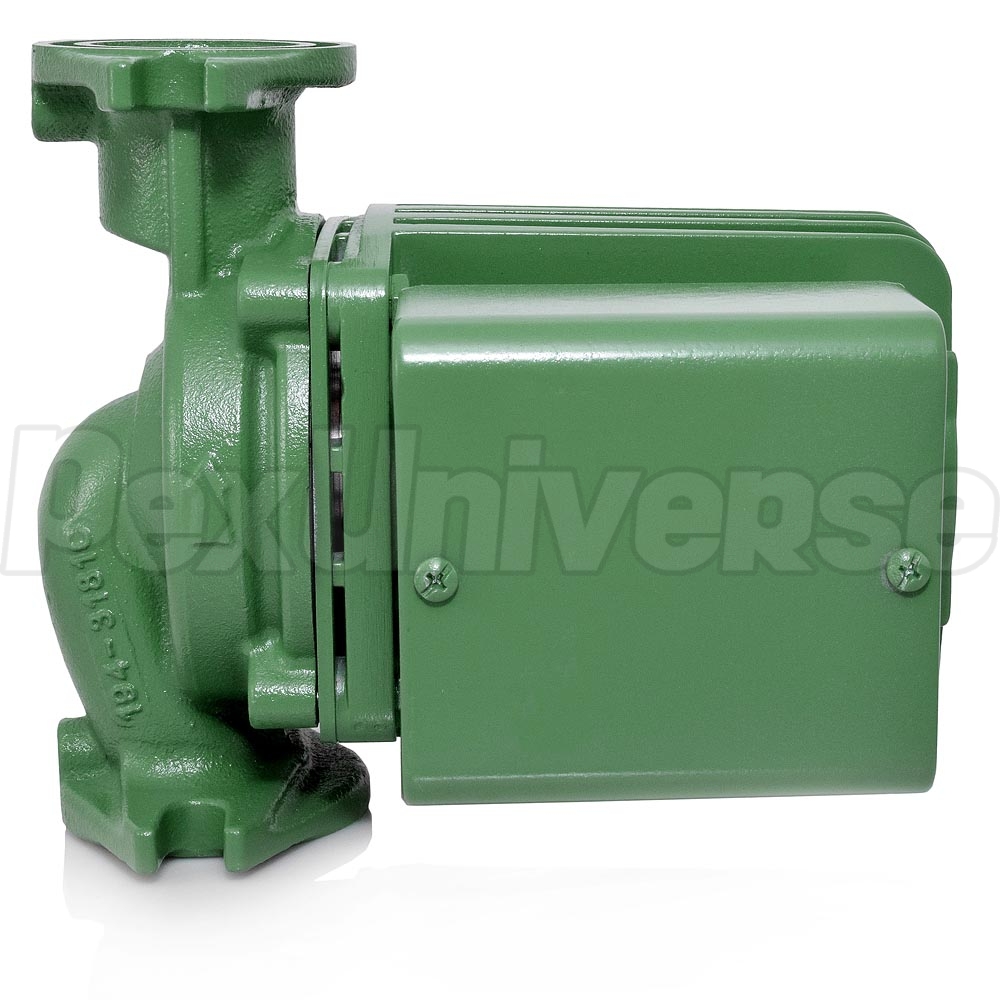

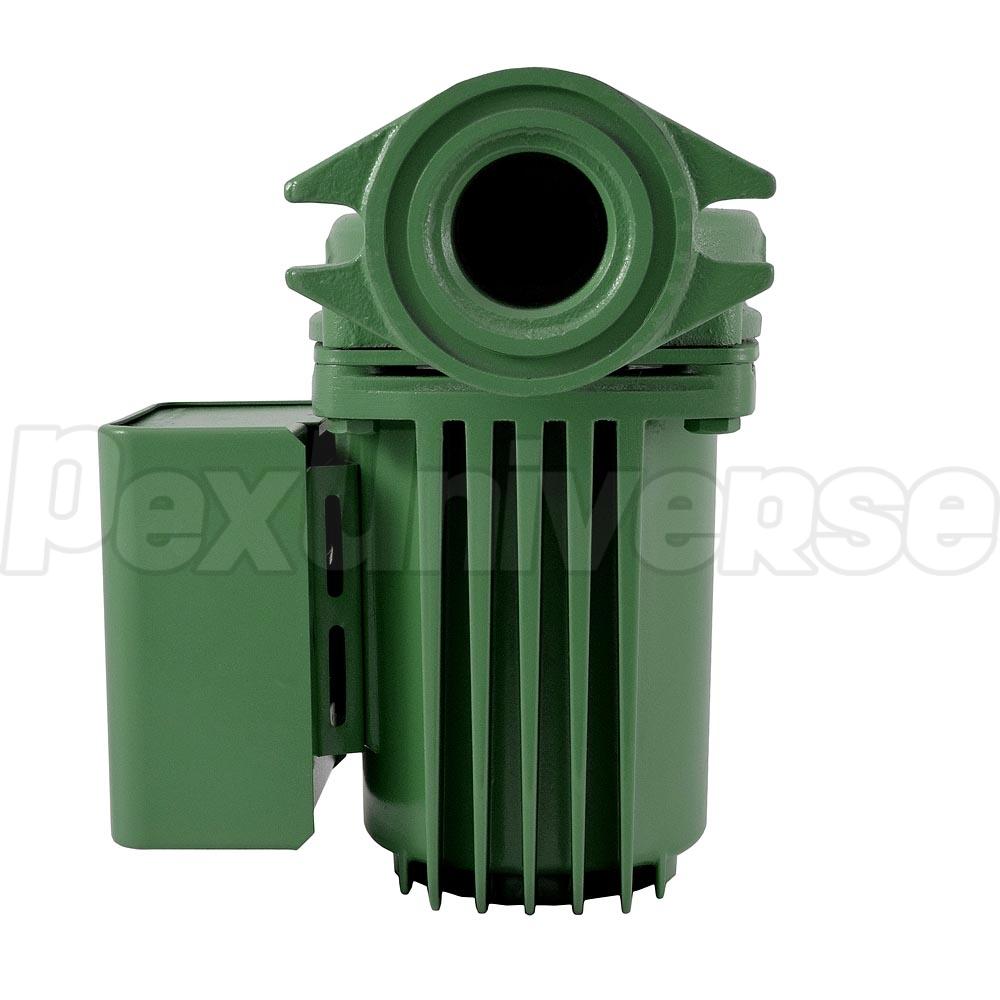

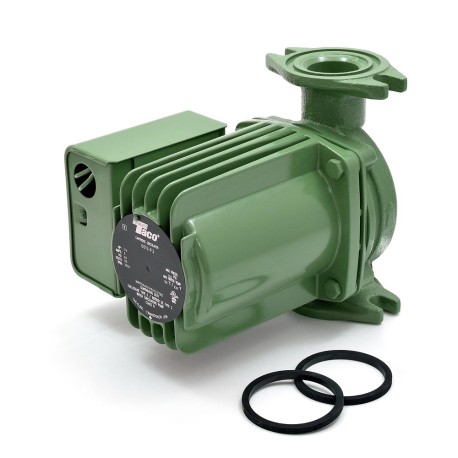

0013 Circulator Pump, 1/6 HP, 115V
Brand: Taco
Part#: 0013-F3
Taco 0013-F3 Circulator Pump is designed for use in high head and high flow applications in larger residential and light commercial systems. The Taco 0013-F3 circulator is perfect for boilers with high pressure drop, fan coil units, heat exchangers, large radiant heat systems and geothermal systems. Universal flange to flange dimensions and flange orientation allow allows the Taco 0013-F3 circulator to replace many other models. This model is compact, features low power consumption and ideal for high-efficiency jobs.

Applications:
  • High Pressure Drop Boilers;
  • Medium/Large Hydronic, Geothermal and Radiant Heating projects;
  • Wood Boilers / Furnaces;
  • Hydro-Air Fan Coils;
  • And many others

Cross-References:
  • Grundfos UP26-99F
  • Grundfos UP26-116F

Technical Specifications:
  • Flow Range: 0 – 34 GPM;
  • Head Range: 0 – 33 Feet;
  • Minimum Fluid Temperature: 40ËšF (4ËšC);
  • Maximum Fluid Temperature: 230°F (110ËšC);
  • Maximum Working Pressure: 125 psi;
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged;
  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 2.0A;
  • HP: 1/6HP.

Warranty:
3 year manufacturer's warranty.
