UPS26-99FC 3-Speed Circulator Pump w/ IFC, 1/6 HP, 115V
Brand: Grundfos
Part#: 52722512
Model: UPS26-99FC

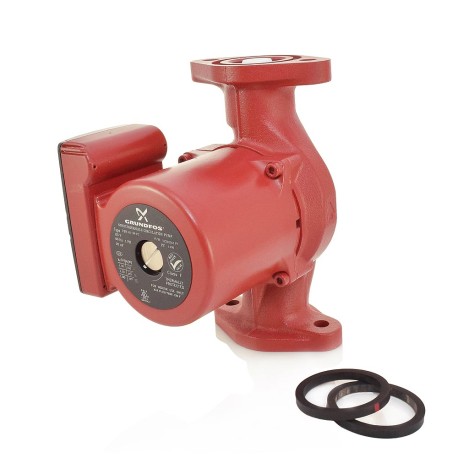

The Grundfos UPS26-99FC is a 3-speed cast iron circulator pump (Grundfos SKU# 52722512) with built-in flow check. 3 speeds (Low/Med/High) of the Grundfos UPS26-99FC make this model very versatile and allow to use it in a large variety of heating applications including radiant, hydronic, radiators, fan coils, etc. A built-in flow check eliminates the need to buy and install a separate in-line check valve. This circulator is designed for closed-loop systems with medium to high flow rates and pressure drops. A built-in automatic resetting thermal protection of the pump assures motor safety and extends circulator's life.

Applications:
  • Closed loop radiant heating & snow melting systems.
  • Baseboard/Radiator/Fan coil heating and other hydronic heating applications.
  • And others.

Features:
  • Built-in motor protection for longer life and better performance.
  • Suitable for a wide range of applications, including radiant heating, hydronic heating, fan coil heating, solar and other system types.
  • Whisper-quiet operation for sound sensitive installations.
  • Includes (2) Gaskets (O-rings).
  • UL/CSA listed.

Technical Specifications:
  • Voltage: 115V
  • Amperage at Speed 1: 1.3 Amps
  • Amperage at Speed 2: 1.5 Amps
  • Amperage at Speed 3: 1.8 Amps
  • Hertz: 60 Hz
  • Phase: 1
  • Watts at Speed 1: 150W
  • Watts at Speed 2: 179W
  • Watts at Speed 3: 197W
  • Max Pressure: 145 psi
  • Max Temperature: 230F
  • Min Temperature: 36F

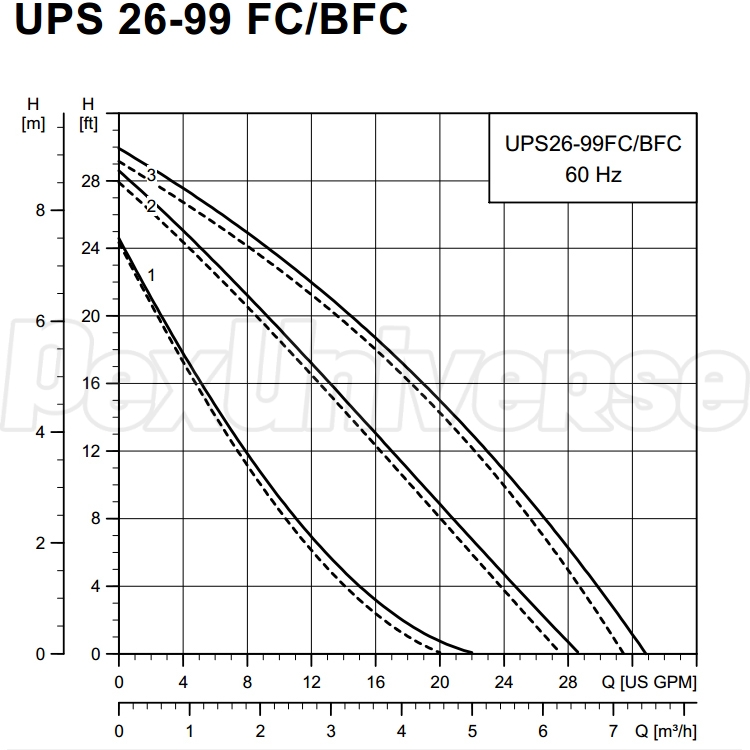

  • Flow Range: 0-33 GPM
  • Head Range: 0-29 ft
  • Horse Power: 1/6HP
  • Body: Cast Iron
  • Connections: Flanged, 1/2", 3/4", 1", 1-1/4"

Warranty:
2 years from the date of installation
