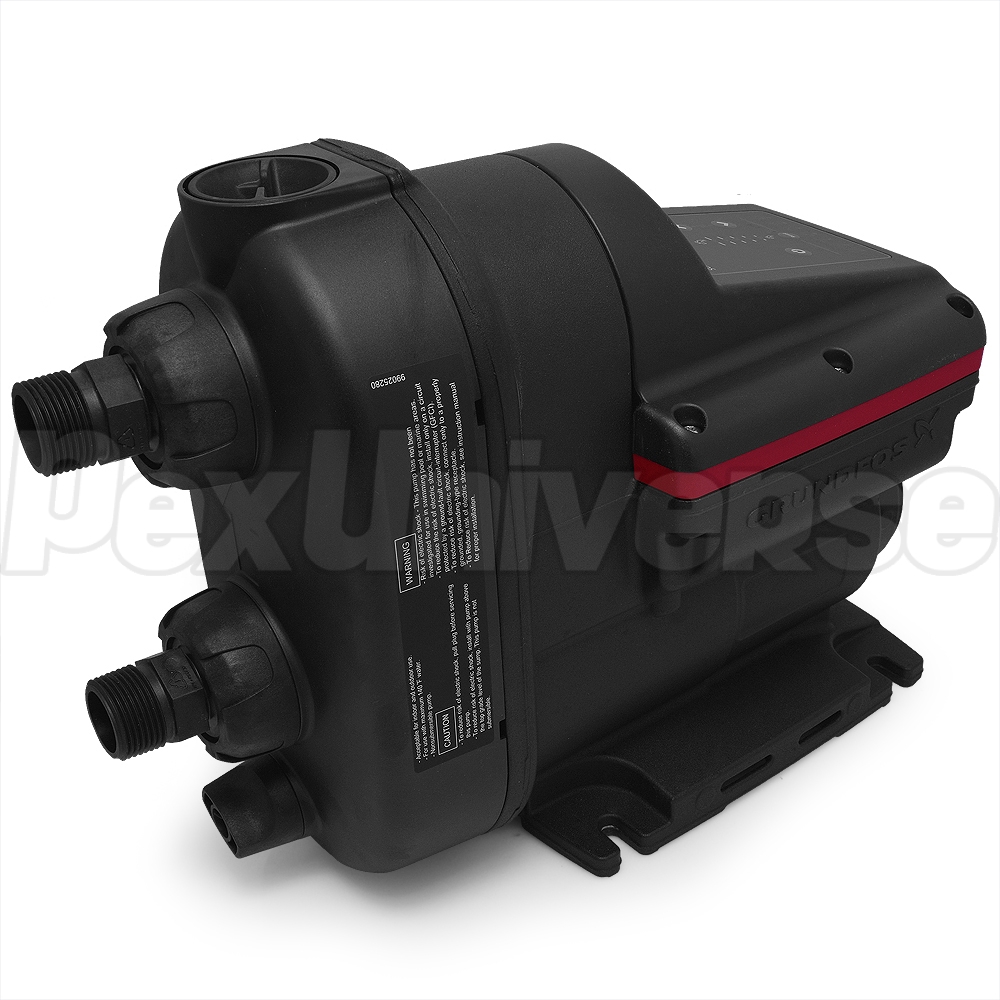

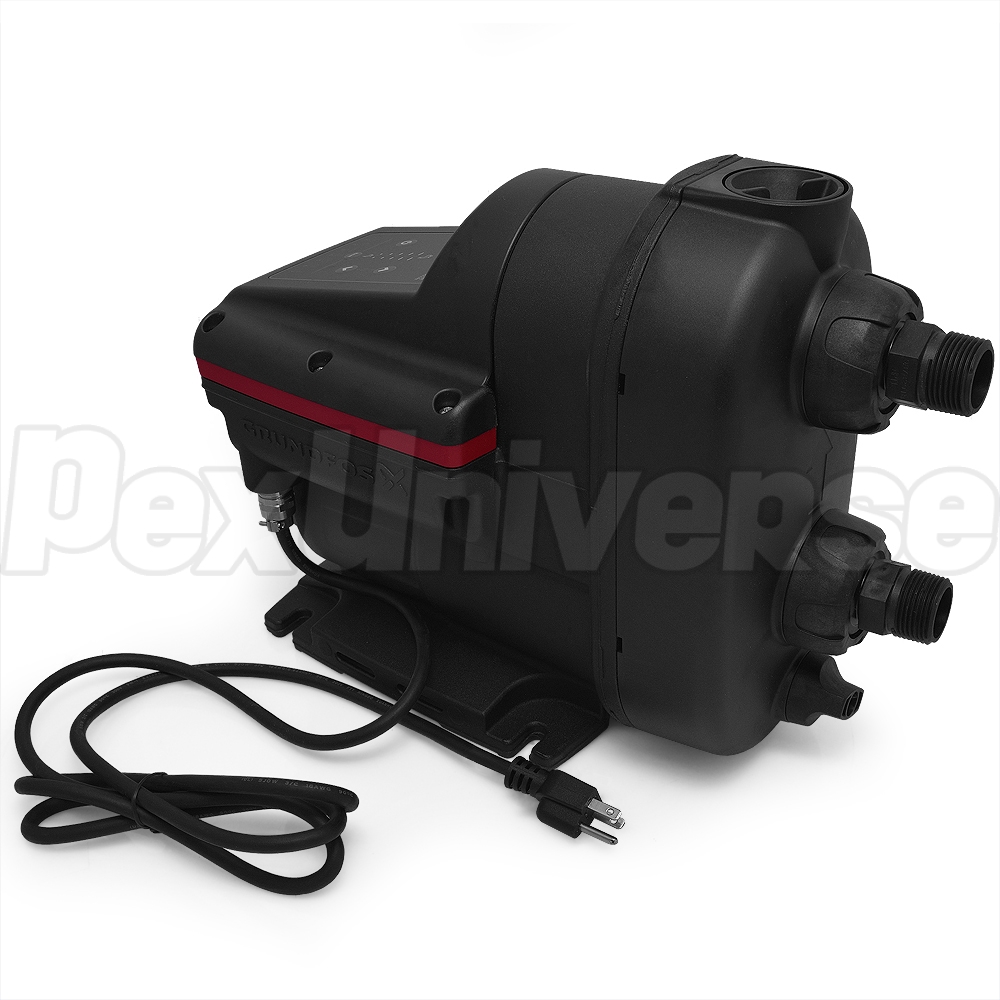

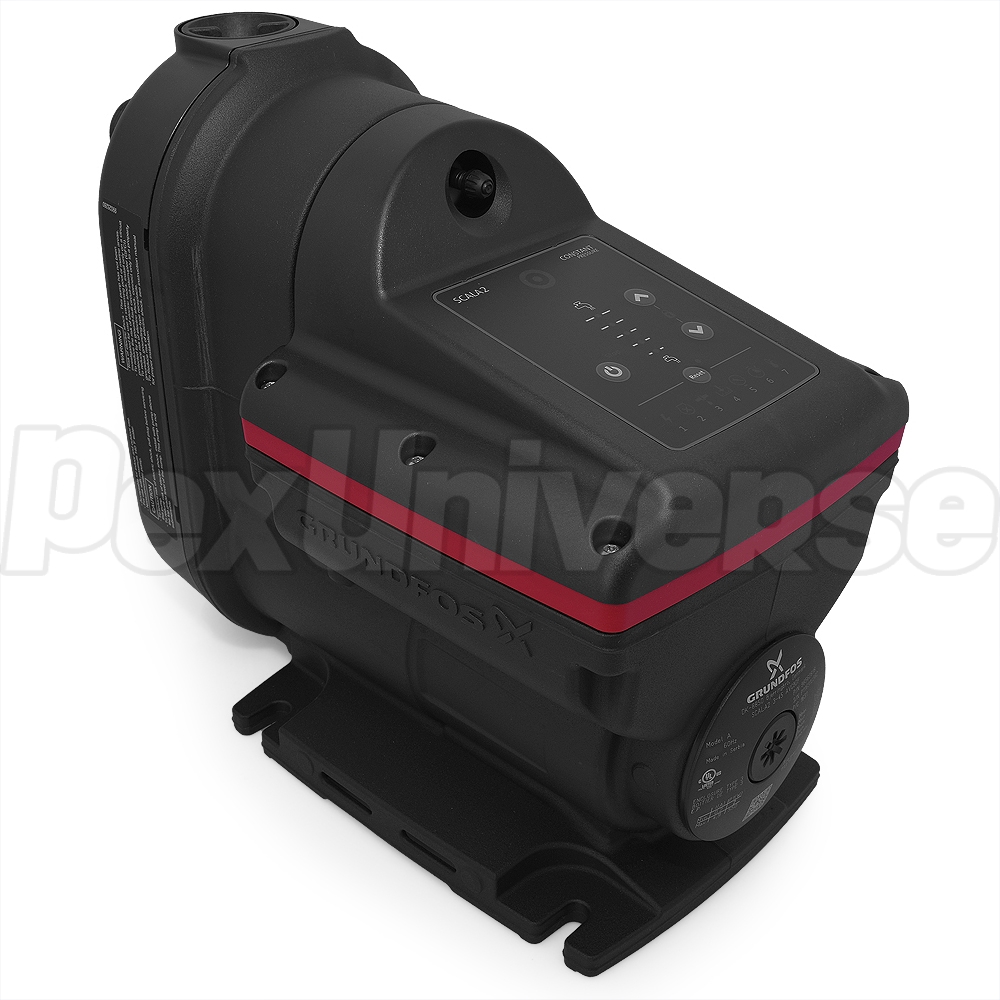

Grundfos SCALA2 is a fully integrated water presure booster pump designed to deliver perfect water pressure. It features pump, tank, motor, sensor, drive and non-return valve all in one compact unit that installs quickly and easily. With its water-cooled motor it offers one of the lowest noise levels in its class. Intelligent pump control adjusts performance to any demand.
Features:
Intelligent pump control
Water-cooled, permanent magnet motor
Dry running protection
Self-priming

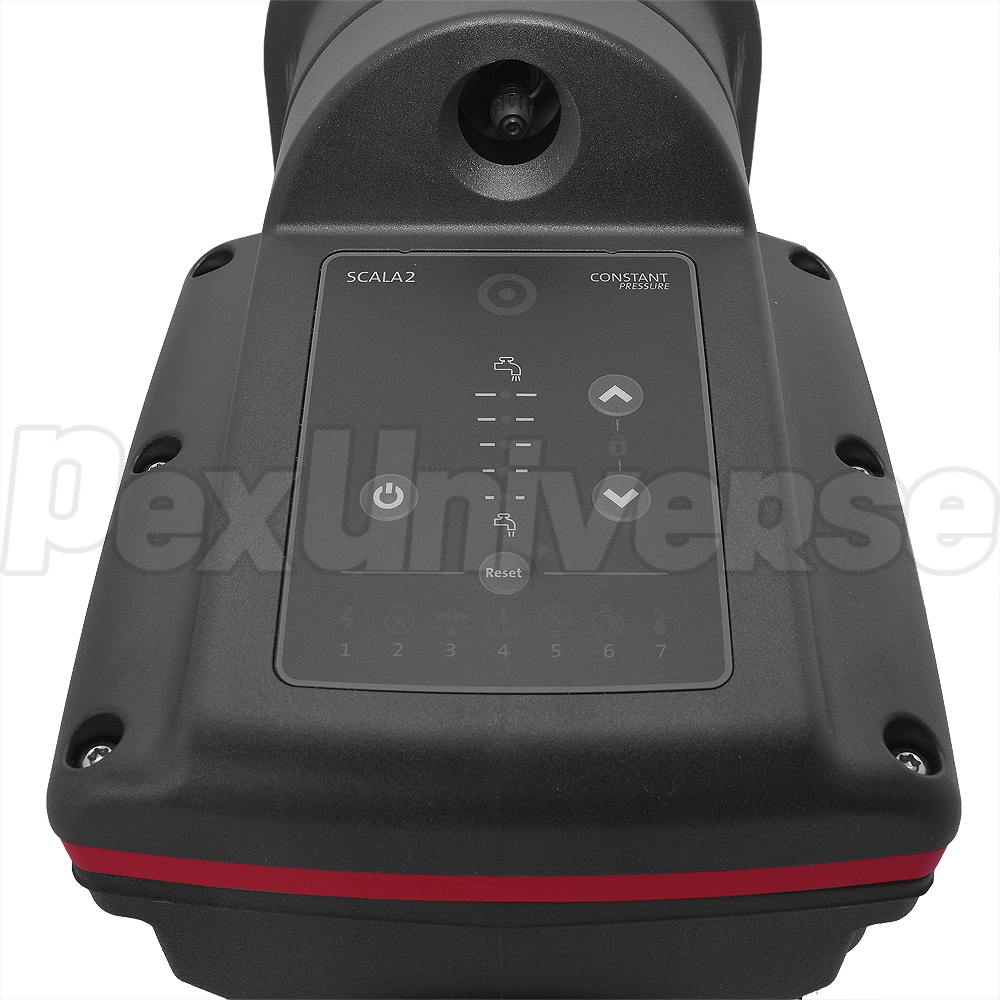

User friendly control panel
Outdoor-ready
Easy sizing and selection
Adjustable constant pressure
Noise level of 47 dB(A) in typical use.

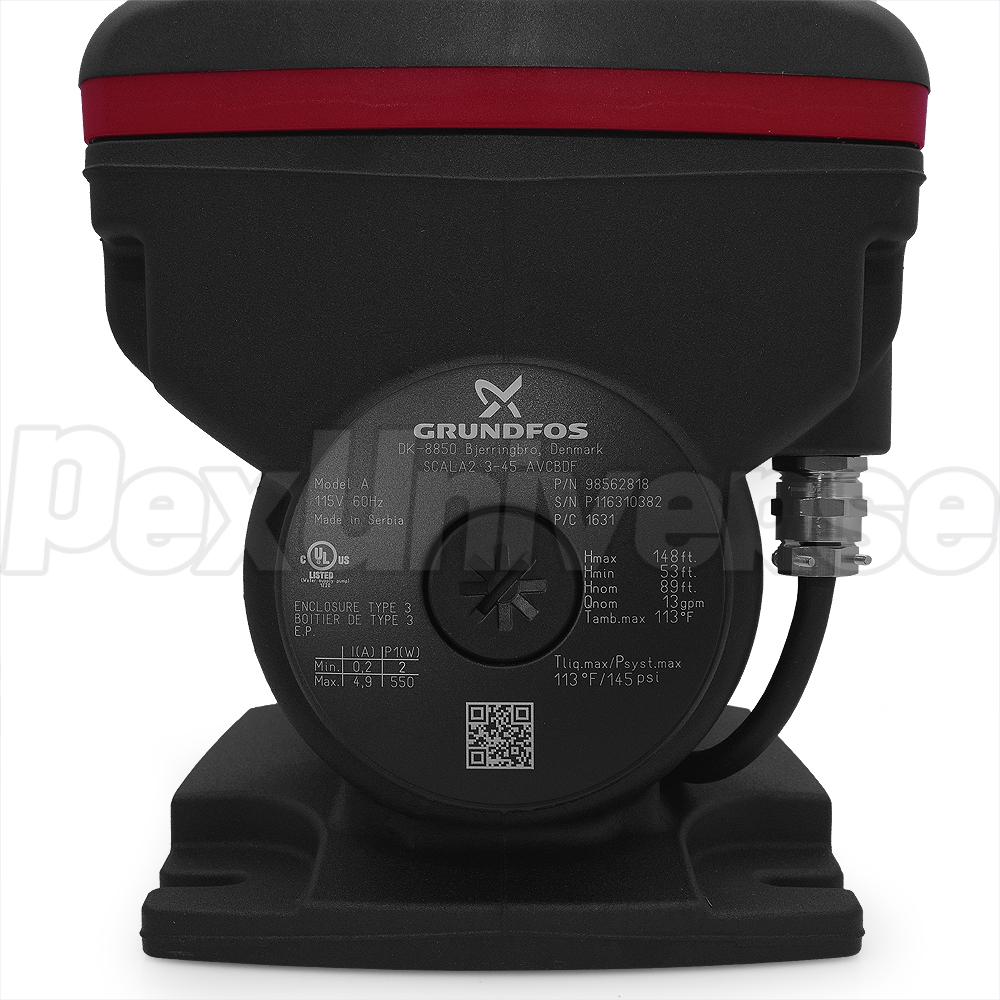

Technical Specifications:
Voltage: 115V
Main frequency: 60 Hz
Power: 560W @ 5 - 5.7A
Connection: 1" NPT
Maximum ambient temperature: 113°F (45°C )
Maximum liquid temperature: 113°F (45°C)
Maximum system pressure: 145 PSI (10 bar)
Maximum inlet pressure: 87 PSI (6 bar)
Maximum head: 148 ft (45 m)
Pumped liquid: Clean, fresh water and chlorinated water < 300 ppm.

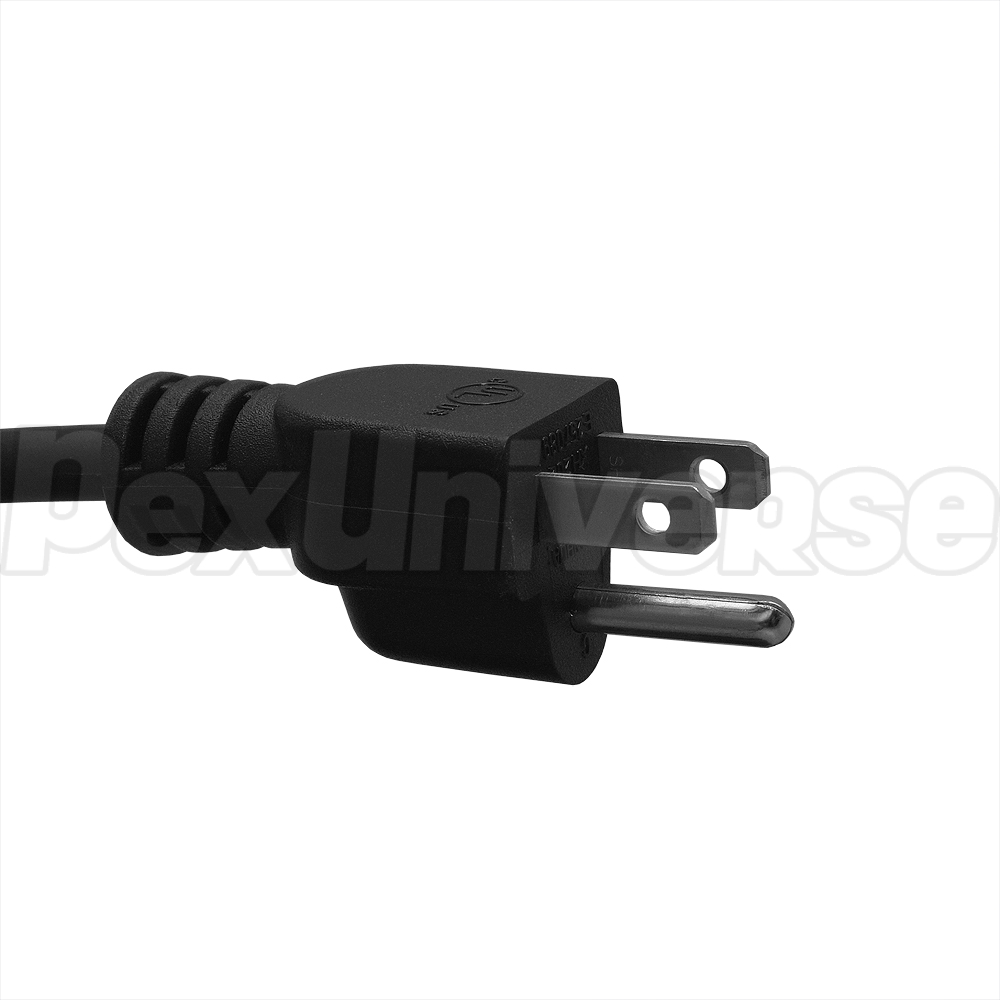

Type of cable plug: IEC type B, NEMA 5-15P
Enclosure Rating: NEMA 3
Factory set tank pre-charge pressure: 18 psi
Maximum Taps: 8
Maximum Number of Floors: 3
Net weight: 22 lbs
Dimension (L x W x H): 15.9" x 7.6" x 11.9" (403mm x 193mm x 302mm).
