1/2" Sweat x 3/8" OD Compr. Angle Stop Valve (1/4-Turn), Lead-Free BrassCraft

1/2" Sweat x 3/8" OD Compr. Angle Stop Valve (1/4-Turn), Lead-Free

Brand: BrassCraft
Part#: KTR19X-C
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

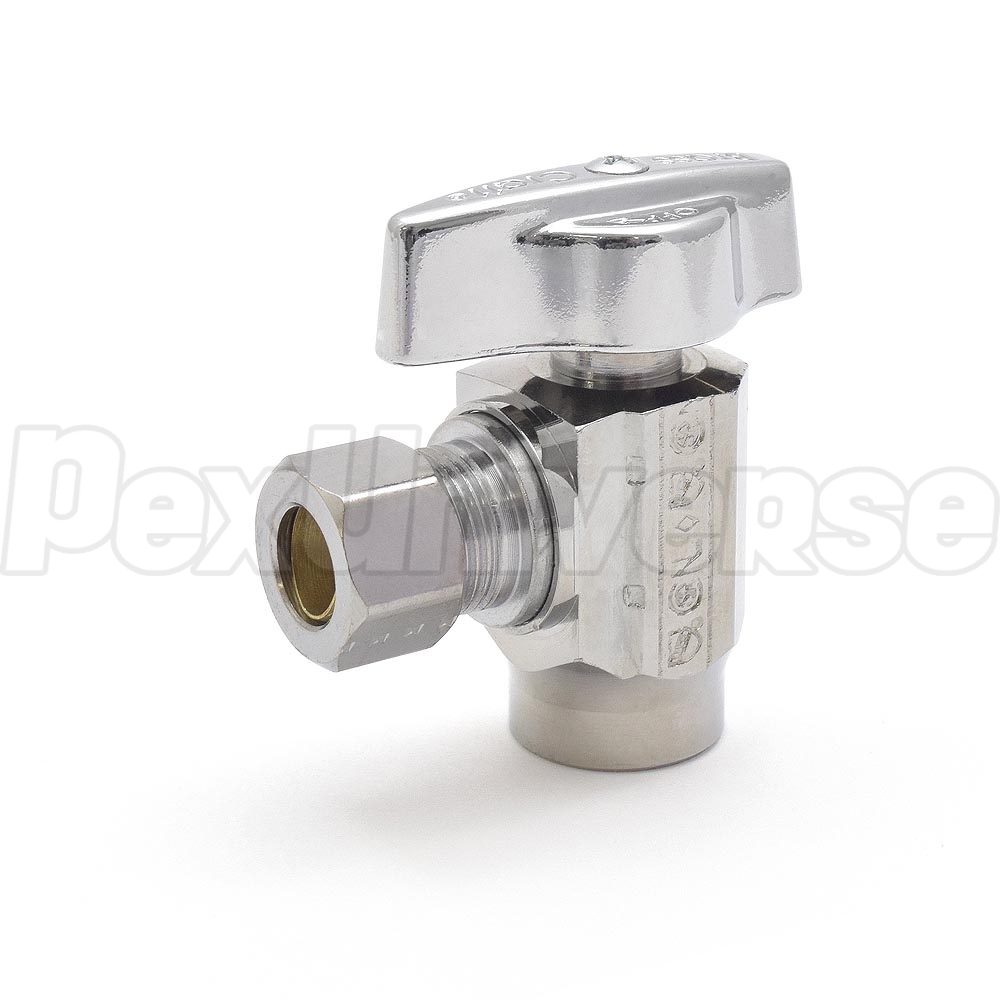

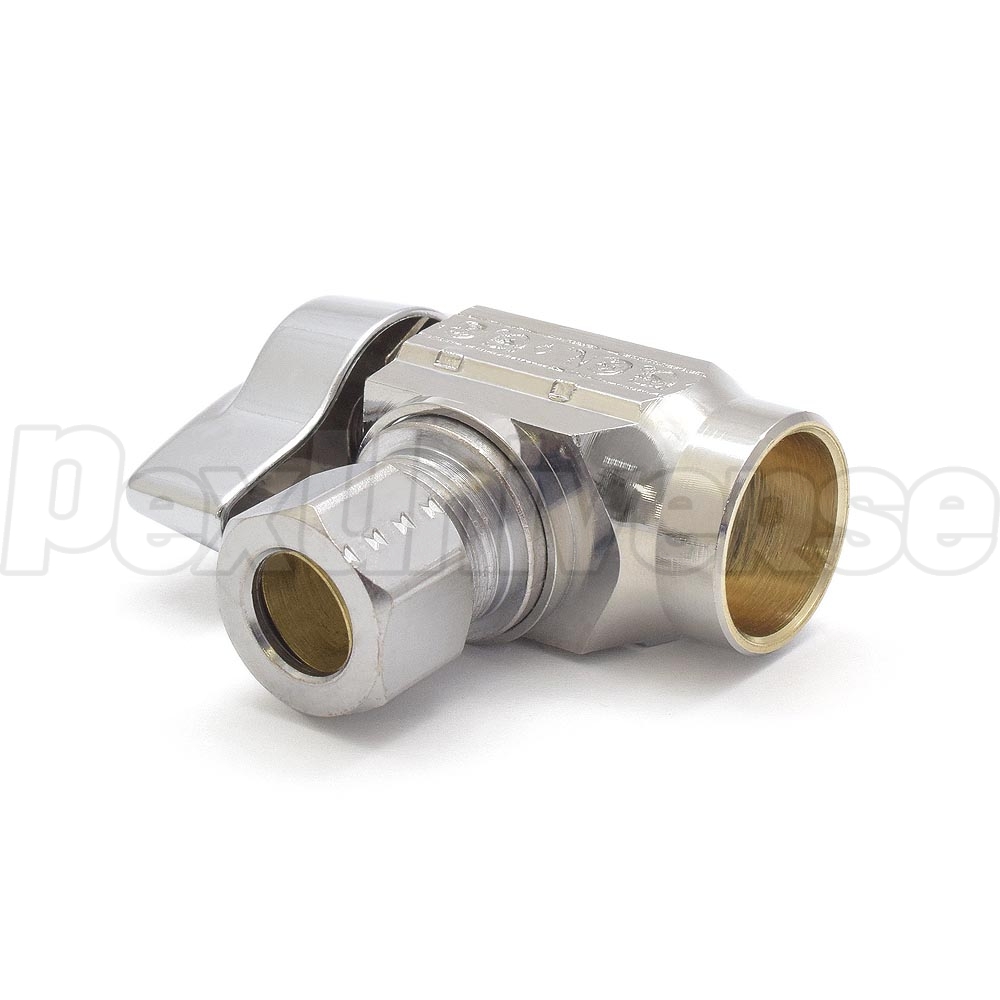

BrassCraft KT series 1/4-Turn Ball Sweat Inlet (Compression Outlet) Angle Stop Valve. KT series ball stop valves can be used for recirculating water in systems that produce continuous use temperatures above 115°F.

Materials of Construction:
  • Valve Body: Compliant brass;
  • Stem: Compliant brass, plated;
  • Seats: PTFE;
  • Ball: Compliant brass, precision machined;
  • Stem O-ring: Viton & Nitrile;
  • Handle: Zinc die cast;
  • Handle Screw: Zinc-plated steel;
  • Compression Sleeve: C36000 brass;
  • Compression Nut: C36000 brass.

Features:
  • Precision-machined brass ball is specially engineered and mated with PTFE seats to provide smooth operation without freeze ups even after long periods of non-use
  • TWO high-performance o-rings withstand high temperatures and corrosion from harsh water environments
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • Blow-out proof brass stem is assembled from the inside out with two o-rings to ensure safe, reliable performance
  • Plated stem provides corrosion resistance and prevents o-ring damage after long periods of non-use
  • Patented, chrome plated metal handle is designed for durability, corrosion resistance & a sleek appearance
  • Easy-to-remove handle with screw attachment protects accidental stop operation during rough-ins
  • 100% leak tested
  • Compliant KT Stops available for California and Vermont “low-lead” requirements.

Technical Specifications:
  • Closing: 1/4 Turn
  • Inlet: 5/8” OD (1/2” Nominal) Sweat
  • Outlet: 3/8” OD (1/4"" Nominal) Compression
  • Valve Type: Angle
  • Temperature: 40°F to 180°F
  • Maximum Pressure: 125 PSI.
