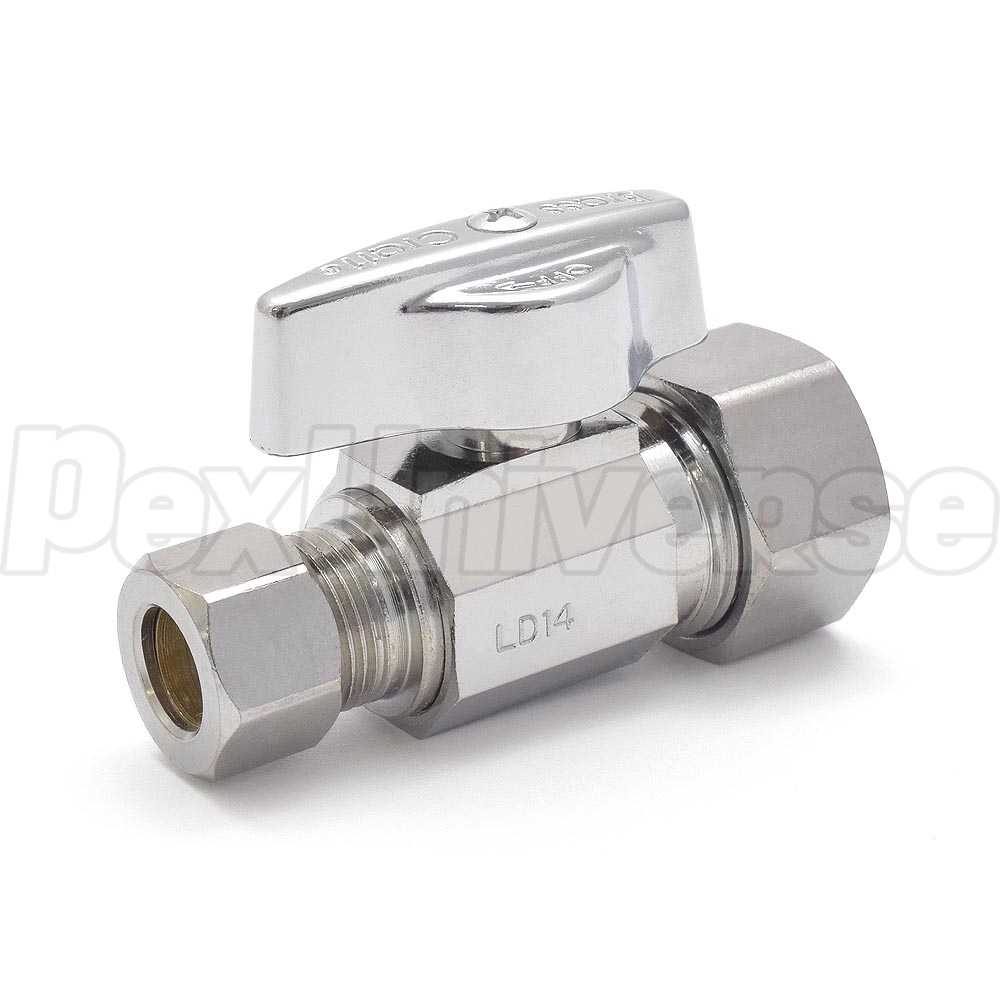

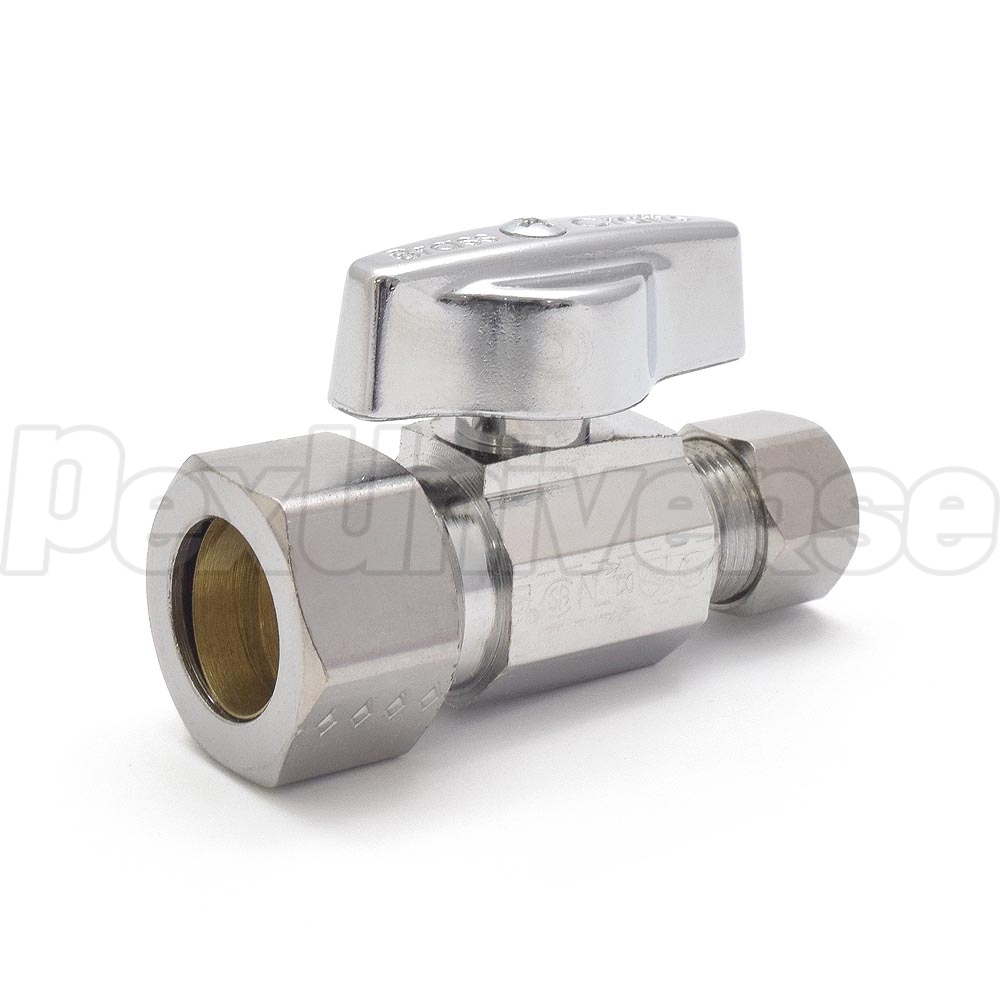

5/8" OD Compr. x 3/8" OD Compr. Straight Stop Valve (1/4-Turn), Lead-Free
Brand: BrassCraft
Part#: KTCR14X-C

BrassCraft KT series 1/4-Turn Ball Compression Type Straight Stop Valve. KT series ball stop valves can be used for recirculating water in systems that produce continuous use temperatures above 115°F.

Materials of Construction:
  • Body: No-Lead brass or No-Lead brass (chrome plated);
  • Stem: No-Lead brass or No-Lead brass (chrome plated);
  • Seat: PTFE;
  • Ball: No-Lead brass, precision machined;
  • Stem O-ring: Rubber;
  • Handle: Zinc (die cast plated, ABS plated) or Polycarbonate;
  • Screw: Zinc-plated steel;
  • Compression Sleeve: Brass;
  • Compression Nut: Brass or brass (chrome plated).

Features:
  • Precision-machined brass ball is specially engineered and mated with PTFE seats to provide smooth operation without freeze ups even after long periods of non-use
  • Two high-performance o-rings withstand high temperatures and corrosion from harsh water environments
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • Brass stem is assembled from the inside out with two o-rings to ensure safe, reliable performance
  • Plated stem provides corrosion resistance and prevents o-ring damage after long periods of non-use
  • Exclusive, plated metal handle is designed for durability, corrosion resistance & a sleek appearance
  • Easy-to-remove handle with screw attachment protects accidental stop operation during rough-ins
  • 100% leak tested
  • No Lead.

Technical Specifications:
  • Closing: 1/4 Turn
  • Inlet: 5/8” OD (1/2” Nominal) Compression
  • Outlet: 3/8” OD (1/4"" Nominal) Compression
  • Shape: Straight
  • Temperature: 40°F to 180°F
  • Maximum Pressure: 125 PSI.
